Double silencing structure

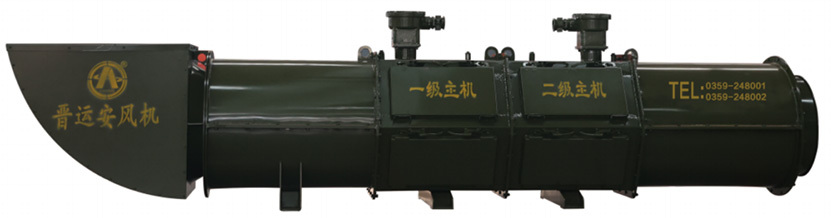

The FBD series low-noise double silencing structure is based on the conventional FBD series explosion-proof, pressure-in, counter-rotating axial flow local ventilation fan. It adds an inlet silencer to achieve a double silencing structure at the inlet and outlet. The fan consists of a collector, inlet silencer, primary host, secondary host, outlet silencer diffuser, explosion-proof motor, etc.; This ventilation fan features high flow rate, high pressure, high efficiency, and low noise. It is well-designed and technologically advanced, featuring energy saving, low noise, serialization, simple structure, convenient maintenance, and strong applicability.

Environmentally friendly, convenient, detachable, low-noise axial flow local ventilation fan structure

Considering that the environmentally friendly FBD low-noise axial flow local ventilation fan operates in environments with high coal dust or dust for extended periods, a large amount of dust or coal ash will accumulate inside the silencing layer after prolonged operation. This accumulation on the silencing material significantly reduces the noise reduction effect, and cleaning the original structure is difficult. Therefore, our company has developed a new convenient and detachable hexagonal environmentally friendly FBD low-noise axial flow local ventilation fan structure;

This structure adopts a three-dimensional hexagonal structure, using automated edge folding technology and an independent design method, making it convenient for users to replace the silencing material later; This structure is easy to disassemble and install, meeting users' noise reduction requirements while overcoming the problems of cleaning and replacing the noise reduction material after pollution, making it convenient, practical, and cost-effective.

Environmentally friendly low-noise local ventilation fan structure

The environmentally friendly FBD explosion-proof axial flow local ventilation fan reduces noise of various frequencies to below 85 to 80 decibels, protecting workers' physical and mental health, improving the underground working environment, and achieving environmentally friendly mine ventilation.

The environmentally friendly local fan is a new product improved from the side-inlet low-noise local fan. The noise is below 80 decibels. The noise reduction measures adopted by the low-noise environmentally friendly local fan are based on the principles of noise generation and propagation, changing the air intake direction, optimizing the structural design, and through better adsorption of mid-low frequency noise and efficient isolation of high-frequency noise, the overall noise of the fan is eliminated and attenuated. The modular design composed of various silencing components can provide users with better selection, modification, and solutions.

Environmentally friendly FBD low-noise axial flow local ventilation fan

Local ventilation fans are essential ventilation equipment in the mining and excavation process, especially the FBD series explosion-proof, pressure-in, counter-rotating axial flow local ventilation fans. They are widely used in pressure-in long-distance ventilation in large and small cross-section roadways in coal mines, and can also be used for ventilation and air exchange in metallurgical, petrochemical, power, railway, and highway tunnel industries. This series of ventilation fans are reasonably matched with the ventilation parameters of coal mine roadways for excavation construction. This series of fans features high flow rate, high pressure, and high efficiency. However, during operation, the fans generate harsh aerodynamic and mechanical noise, affecting the physical and mental health of workers during mine production. Currently, most commonly used local fans use double-layer casings filled with sound-absorbing materials to reduce noise, but the overall radiated noise of the running fan is greater than 100dB(A), failing to meet customer requirements for low noise.

To this end, our company has developed low-noise and ultra-low-noise environmentally friendly ventilation fans, reducing the noise of various frequencies to below 85 to 80 decibels, protecting the physical and mental health of on-site workers, improving the underground working environment of the mine, and achieving environmentally friendly air supply. We have adopted multiple noise reduction measures. Based on the aerodynamic principles of the fan and the principles of noise generation and propagation, we have added a streamlined air intake silencer and an inlet and outlet composite silencer, optimized the structural design of the fan host, and used high-quality silencing materials to better absorb mid-low frequency noise and efficiently isolate high-frequency noise, eliminating and attenuating the overall noise of the fan.

Introduction to the low-noise counter-rotating axial flow ventilation fan patent

FBD series explosion-proof, pressure-in, counter-rotating axial flow local ventilation fan for mines

Local ventilation in coal mines is essential ventilation equipment in the mining and excavation process, especially the EBD series explosion-proof, pressure-in, counter-rotating axial flow local ventilation fan. It is widely used in pressure-in long-distance ventilation in large and small cross-section roadways in coal mines, and can also be used for ventilation and air exchange in metallurgical, petrochemical, power, railway, and highway tunnel industries. This series of ventilation fans are reasonably matched with the ventilation parameters of coal mine roadways for excavation construction. This series of fans features high flow rate, high pressure, and high efficiency.

The side-inlet silencer combined with the inlet and outlet silencer structure significantly reduces noise. At the same time, the silencer material uses oil-immersed glass fiber felt, which has anti-static and flame-retardant functions. Starting from the design, the fan adopts measures in three aspects: aerodynamic stability, motor electrical noise reduction, and casing noise reduction, effectively reducing the operating noise of the fan; the noise complies with JB/T8690-2014 "Noise Limits for Industrial Ventilation Fans".
