Mine explosion-proof axial flow main ventilator is a kind of high-efficiency and energy-saving forced mechanical ventilation equipment specially designed for various coal mines, mines, and tunnels. It often adopts a pull-out ventilation structure.This series of fans can be designed and manufactured in combination with the ventilation network parameters of major and medium-sized coal mines or mines; the fan adopts an adjustable installation angle design, and the blade installation angle can be adjusted in time for changes in the working conditions of the mine ventilation network, so that the fan can always be in high-efficiency and energy-saving operation, and adopts the overall structure of direct connection between the motor and the impeller, eliminating the need for a transmission system, which has many advantages such as high efficiency, energy saving, low noise, and simple installation and disassembly.The ventilator is also suitable for metal mines, chemical mines and other factories and mines that require forced ventilation.

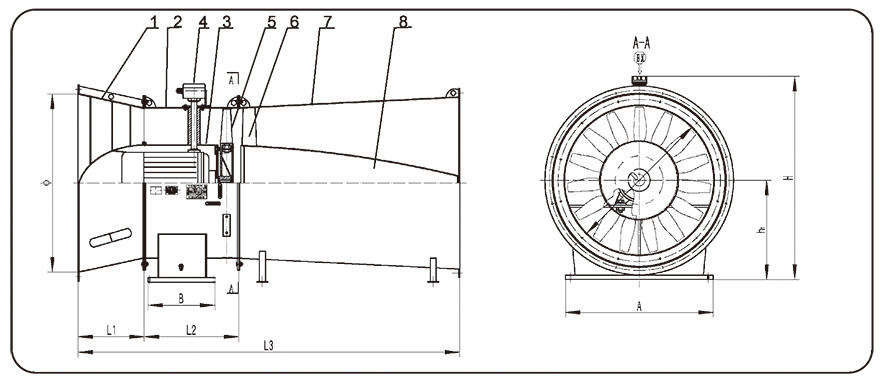

Schematic diagram of FBCZ/FKZ mine axial flow fan structure

1 Collector 2 Housing 3 Isolation chamber 4 Three-phase asynchronous motor 5 Impeller 6 Rear guide vane 7 Diffuser 8 Diffuser core

Performance parameters and dimensions table of FBCZ/FKZ mine axial flow fan

Note: The parameters in this dimension table are for reference only. Changes will be made without further notice.
